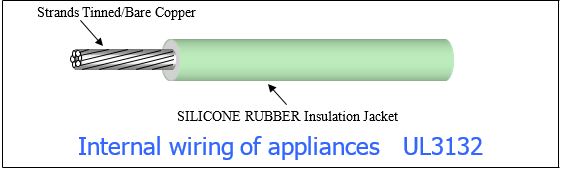

High Temperature Wire , Silicone Insulated Wire Style UL3132 Hook-up Wire
Internal wiring of electronic equipment
Request a Quote for Style UL3132 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature150 ℃
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
16 | 7 | 25 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.31 | 15.34 |
16 | 19 | 29 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.31 | 15.34 |
16 | 26 | 30 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.15 | 15.11 |
18 | 1 | 18 | .0402 | 1.02 | .0717 | 1.82 | 6.77 | 22.2 | 6.58 | 9.78 |
18 | 16 | 30 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 6.72 | 10.00 |
18 | 7 | 26 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 6.88 | 10.23 |
18 | 41 | 34 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 6.80 | 10.12 |
20 | 1 | 20 | .0320 | 0.813 | .0635 | 1.61 | 10.7 | 35.2 | 4.54 | 6.75 |
20 | 10 | 30 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.77 | 7.09 |
20 | 21 | 33 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.79 | 7.12 |
22 | 1 | 22 | .0252 | 0.64 | .0567 | 1.44 | 17.2 | 56.4 | 3.14 | 4.68 |
22 | 7 | 30 | .0299 | 0.76 | .0614 | 1.56 | 18.1 | 59.4 | 3.40 | 5.06 |
22 | 17 | 34 | .0299 | 0.76 | .0614 | 1.56 | 18.1 | 59.4 | 3.40 | 5.06 |
24 | 7 | 32 | .0240 | 0.61 | .0555 | 1.41 | 28.7 | 94.2 | 2.49 | 3.71 |
24 | 11 | 34 | .0240 | 0.61 | .0555 | 1.41 | 28.7 | 94.2 | 2.50 | 3.72 |
26 | 7 | 34 | .0197 | 0.50 | .0512 | 1.30 | 45.8 | 150 | 1.89 | 2.81 |
28 | 7 | 36 | .0154 | 0.39 | .0469 | 1.19 | 72.8 | 239 | 1.45 | 2.15 |
30 | 1 | 30 | .0100 | 0.254 | .0415 | 1.05 | 110 | 361 | 1.06 | 1.58 |
