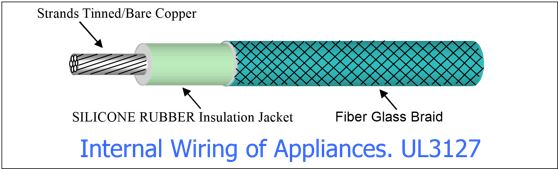

Electronic Hook Up Wire , Silicone Wire with Fiberglass Braid Style UL3127 Hook-up Wire
Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 150℃
Request a Quote for Style UL3127 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 150 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering for fiberglass braid
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
2 | 259 | 26 | .2854 | 7.25 | .4232 | 10.75 | 0.1641 | 0.5384 | 232.44 | 345.82 |
4 | 133 | 25 | .2386 | 6.06 | .3764 | 9.56 | 0.2608 | 0.8559 | 170.12 | 253.11 |
6 | 266 | 30 | .1882 | 4.78 | .3260 | 8.28 | 0.4148 | 1.361 | 114.41 | 170.22 |
8 | 168 | 30 | .1496 | 3.80 | .2874 | 7.30 | 0.6795 | 2.23 | 79.45 | 118.20 |
