High Temperature Wire , Silicone Insulated Wire Style UL3123 Hook-up Wire

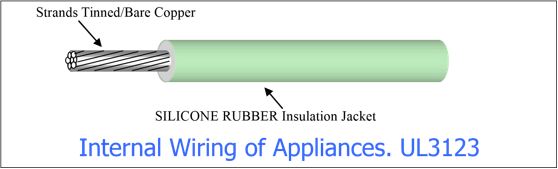

Internal wiring of appliances or electric clothes, dryers where exposed to temperature not exceeding 150 ℃.
Request a Quote for Style UL3123 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 150 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
16 | 7 | 25 | .0591 | 1.50 | .1205 | 3.06 | 2.73 | 8.96 | 13.24 | 19.70 |
16 | 19 | 29 | .0591 | 1.50 | .1205 | 3.06 | 2.73 | 8.96 | 13.24 | 19.70 |
16 | 26 | 30 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.09 | 19.47 |
16 | 54 | 33 | .0591 | 1.50 | .1205 | 3.06 | 4.45 | 14.6 | 13.5 | 20.08 |
18 | 1 | 18 | .0402 | 1.02 | .1016 | 2.58 | 6.77 | 22.2 | 8.99 | 13.37 |
18 | 7 | 26 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.46 | 14.07 |
18 | 16 | 30 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.31 | 13.85 |
18 | 19 | 31 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.39 | 13.97 |
18 | 41 | 34 | .0465 | 1.18 | .1079 | 2.74 | 7.06 | 23.2 | 9.39 | 13.97 |
20 | 1 | 20 | .0320 | 0.813 | .0934 | 2.37 | 10.7 | 35.2 | 6.72 | 10.00 |
20 | 10 | 30 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.10 | 10.56 |
20 | 19 | 33 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.14 | 10.63 |
20 | 21 | 33 | .0374 | 0.95 | .0988 | 2.51 | 11.2 | 36.7 | 7.12 | 10.59 |
22 | 1 | 22 | .0252 | 0.64 | .0866 | 2.20 | 17.2 | 56.4 | 5.14 | 7.64 |
22 | 7 | 30 | .0299 | 0.76 | .0913 | 2.32 | 18.1 | 59.4 | 5.53 | 8.22 |
22 | 17 | 34 | .0299 | 0.76 | .0913 | 2.32 | 18.1 | 59.4 | 5.53 | 8.22 |
22 | 19 | 35 | .0299 | 0.76 | .0913 | 2.32 | 18.1 | 59.4 | 5.49 | 8.17 |
24 | 7 | 32 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.45 | 6.63 |
24 | 11 | 34 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.46 | 6.64 |
24 | 19 | 36 | .0240 | 0.61 | .0854 | 2.17 | 28.7 | 94.2 | 4.46 | 6.64 |
26 | 7 | 34 | .0197 | 0.50 | .0811 | 2.06 | 45.8 | 150 | 3.73 | 5.55 |
26 | 19 | 38 | .0197 | 0.50 | .0811 | 2.06 | 45.8 | 150 | 3.78 | 5.62 |
28 | 7 | 36 | .0154 | 0.39 | .0768 | 1.95 | 72.8 | 239 | 3.17 | 4.71 |
30 | 1 | 30 | .0100 | 0.254 | .0714 | 1.81 | 110 | 361 | 17.40 | 25.89 |
