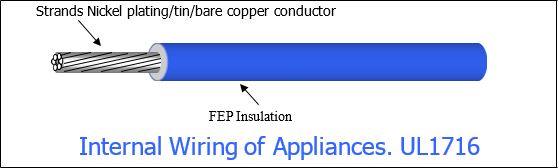

High Temperature Wire , FEP Insulated Wire Style UL1716 Hook-up Wire
Internal wiring of appliances and electronic equipment, Suitable for immersion in gasoline; gasoline vapor; 80℃ in oil; and or 150 Volts peak for electronics use only.
Request a Quote for Style UL1716 Hook-up Wire
- Conductor material of Tinned or bare copper
- Rated temperature 150 ℃
- Rated voltage 150 V (Spark voltage 1500 V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 6 | 266 | 30 | .1882 | 4.78 | .2276 | 5.78 | 0.4148 | 1.361 | 94.36 | 140.39 |
| 8 | 168 | 30 | .1496 | 3.80 | .1890 | 4.80 | 0.6795 | 2.23 | 61.95 | 92.17 |
| 10 | 19 | 23 | .1209 | 3.07 | .1469 | 3.73 | 1.08 | 3.55 | 39.04 | 58.09 |
| 12 | 19 | 25 | .0906 | 2.30 | .1165 | 2.96 | 1.72 | 5.64 | 22.91 | 34.09 |
| 14 | 19 | 27 | .0740 | 1.88 | .1000 | 2.54 | 2.73 | 8.96 | 16.18 | 24.07 |
| 14 | 41 | 30 | .0740 | 1.88 | .1000 | 2.54 | 2.73 | 8.96 | 16.12 | 23.98 |
| 16 | 19 | 29 | .0591 | 1.50 | .0748 | 1.90 | 4.45 | 14.6 | 9.78 | 14.55 |
| 16 | 26 | 30 | .0591 | 1.50 | .0748 | 1.90 | 4.45 | 14.6 | 9.62 | 14.32 |
| 18 | 7 | 26 | .0465 | 1.18 | .0622 | 1.58 | 7.06 | 23.2 | 6.40 | 9.52 |
| 18 | 19 | 31 | .0465 | 1.18 | .0622 | 1.58 | 7.06 | 23.2 | 6.33 | 9.42 |
| 20 | 7 | 29 | .0374 | 0.95 | .0492 | 1.25 | 11.2 | 36.7 | 4.06 | 6.04 |
| 20 | 19 | 33 | .0374 | 0.95 | .0492 | 1.25 | 11.2 | 36.7 | 4.06 | 6.04 |
| 22 | 7 | 30 | .0299 | 0.76 | .0417 | 1.06 | 18.1 | 59.4 | 2.70 | 4.01 |
| 22 | 19 | 35 | .0299 | 0.76 | .0417 | 1.06 | 18.1 | 59.4 | 2.70 | 4.01 |
| 24 | 7 | 32 | .0240 | 0.61 | .0358 | 0.91 | 28.7 | 94.2 | 1.89 | 2.81 |
| 24 | 19 | 36 | .0252 | 0.64 | .0370 | 0.94 | 28.7 | 94.2 | 2.03 | 3.02 |
| 26 | 7 | 34 | .0197 | 0.50 | .0315 | 0.80 | 45.8 | 150 | 1.33 | 1.97 |
| 26 | 19 | 38 | .0197 | 0.50 | .0315 | 0.80 | 45.8 | 150 | 1.38 | 2.05 |
| 28 | 1 | 28 | .0126 | 0.32 | .0244 | 0.62 | 69.3 | 227 | 0.83 | 1.23 |
| 30 | 1 | 30 | .0100 | 0.254 | .0218 | 0.55 | 110 | 361 | 0.60 | 0.90 |
