High Temperature Wire , PFA Insulated Wire Style UL1710/1930 Hook-up Wire

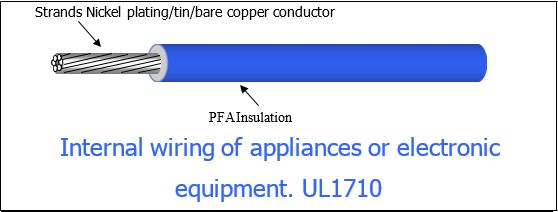

Internal wiring of Appliances or electronic equipment.
Request a Quote for Style UL1710/1930 Hook-up Wire
- Conductor material of Nickel or Silvered copper
- Conductor material used may be tinned copper per ASTM B3
- Operating temperature -55℃~200℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per R : equest
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| *10 | 19 | 23 | .1209 | 3.07 | .1602 | 4.07 | 1.08 | 3.55 | 42.39 | 62.90 |
| 10 | 105 | 30 | .1181 | 3.00 | .1575 | 4.00 | 1.08 | 3.55 | 40.80 | 60.55 |
| *12 | 19 | 25 | .0992 | 2.52 | .1386 | 3.52 | 1.72 | 5.64 | 29.99 | 44.51 |
| 12 | 65 | 30 | .0933 | 2.37 | .1327 | 3.37 | 1.72 | 5.64 | 26.99 | 40.04 |
| 14 | 19 | 27 | .0740 | 1.88 | .1134 | 2.88 | 2.73 | 8.96 | 18.48 | 27.41 |
| 14 | 41 | 30 | .0740 | 1.88 | .1134 | 2.88 | 2.73 | 8.96 | 18.41 | 27.32 |
| *16 | 1 | 16 | .0512 | 1.30 | .0906 | 2.30 | 4.26 | 14.0 | 12.45 | 18.47 |
| 16 | 19 | 29 | .0591 | 1.50 | .0984 | 2.50 | 4.45 | 14.6 | 13.02 | 19.33 |
| 16 | 26 | 30 | .0591 | 1.50 | .0984 | 2.50 | 4.45 | 14.6 | 12.87 | 19.10 |
| *18 | 1 | 18 | .0402 | 1.02 | .0795 | 2.02 | 6.77 | 22.2 | 8.67 | 12.86 |
| *18 | 7 | 26 | .0465 | 1.18 | .0858 | 2.18 | 7.06 | 23.2 | 9.18 | 13.61 |
| 18 | 19 | 31 | .0465 | 1.18 | .0858 | 2.18 | 7.06 | 23.2 | 9.11 | 13.51 |
| *20 | 1 | 20 | .0320 | 0.813 | .0714 | 1.81 | 10.7 | 35.2 | 6.37 | 9.43 |
| 20 | 7 | 29 | .0362 | 0.92 | .0756 | 1.92 | 11.2 | 36.7 | 6.48 | 9.60 |
| 20 | 19 | 33 | .0374 | 0.95 | .0768 | 1.95 | 11.2 | 36.7 | 6.81 | 10.10 |
| *22 | 1 | 22 | .0252 | 0.64 | .0646 | 1.64 | 17.2 | 56.4 | 4.73 | 7.03 |
| 22 | 7 | 30 | .0311 | 0.79 | .0705 | 1.79 | 18.1 | 59.4 | 5.42 | 8.02 |
| 22 | 19 | 35 | .0299 | 0.76 | .0693 | 1.76 | 18.1 | 59.4 | 5.11 | 7.59 |
| *24 | 1 | 24 | .0201 | 0.51 | .0594 | 1.51 | 27.3 | 89.3 | 3.72 | 5.50 |
| 24 | 7 | 32 | .0240 | 0.61 | .0634 | 1.61 | 28.7 | 94.2 | 4.05 | 6.00 |
| 24 | 19 | 36 | .0252 | 0.64 | .0646 | 1.64 | 28.7 | 94.2 | 4.25 | 6.30 |
| *26 | 1 | 26 | .0157 | 0.40 | .0551 | 1.40 | 43.5 | 143 | 2.97 | 4.39 |
| 26 | 7 | 34 | .0197 | 0.50 | .0591 | 1.50 | 45.8 | 150 | 3.30 | 4.89 |
| 26 | 19 | 38 | .0197 | 0.50 | .0591 | 1.50 | 45.8 | 150 | 3.34 | 4.97 |
| 28 | 1 | 28 | .0126 | 0.32 | .0520 | 1.32 | 69.3 | 227 | 2.50 | 3.70 |
| 30 | 1 | 30 | .0100 | 0.254 | .0494 | 1.25 | 110 | 361 | 2.15 | 3.19 |
