High Temperature Wire , PTFE Insulated Wire Style UL1659 Hook-up Wire

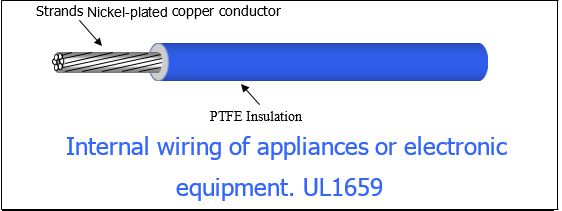

Internal wiring of appliances and electronic equipment, suitable for immersion in gasoline, gasoline vapor and 80℃in oil.
Request a Quote for Style UL1659 Hook-up Wire
- Conductor material of Silvered, or Nickel copper
- “* ”Conductor material used may be Tinned copper per ASTM B3
- Rated temperature 250 ℃
- Rated voltage 600 V (Spark voltage6000 V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| *4/0 | 259 | 21 | .5197 | 13.20 | .6102 | 15.50 | 0.0525 | 0.1722 | 700.44 | 1042.12 |
| *3/0 | 259 | 22 | .4610 | 11.71 | .5516 | 14.01 | 0.0669 | 0.2194 | 560.25 | 833.53 |
| *2/0 | 259 | 23 | .4173 | 10.60 | .5079 | 12.90 | 0.0814 | 0.2670 | 465.47 | 692.52 |
| *1/0 | 259 | 24 | .3657 | 9.29 | .4563 | 11.59 | 0.1026 | 0.3367 | 366.01 | 544.54 |
| *1 | 259 | 25 | .3331 | 8.46 | .4236 | 10.76 | 0.1300 | 0.4268 | 308.50 | 458.98 |
| *2 | 259 | 26 | .2854 | 7.25 | .3469 | 8.81 | 0.1641 | 0.5384 | 217.60 | 323.75 |
| *4 | 133 | 25 | .2386 | 6.06 | .3000 | 7.62 | 0.2608 | 0.8559 | 156.76 | 233.23 |
| 6 | 266 | 30 | .1882 | 4.78 | .2496 | 6.34 | 0.4148 | 1.361 | 102.64 | 152.70 |
| 8 | 168 | 30 | .1496 | 3.80 | .2110 | 5.36 | 0.6795 | 2.23 | 68.89 | 102.49 |
| *10 | 19 | 23 | .1209 | 3.07 | .1602 | 4.07 | 1.08 | 3.55 | 42.67 | 63.48 |
| *12 | 19 | 25 | .0906 | 2.30 | .1299 | 3.30 | 1.72 | 5.64 | 25.81 | 38.41 |
| 14 | 19 | 27 | .0740 | 1.88 | .1134 | 2.88 | 2.73 | 8.96 | 18.69 | 27.80 |
| 16 | 19 | 29 | .0591 | 1.50 | .0984 | 2.50 | 4.45 | 14.6 | 13.22 | 19.66 |
| *18 | 7 | 26 | .0465 | 1.18 | .0858 | 2.18 | 7.06 | 23.2 | 9.34 | 13.89 |
| 18 | 19 | 31 | .0465 | 1.18 | .0858 | 2.18 | 7.06 | 23.2 | 9.26 | 13.78 |
| 20 | 7 | 29 | .0374 | 0.95 | .0768 | 1.95 | 11.2 | 36.7 | 6.69 | 9.95 |
| 20 | 19 | 33 | .0374 | 0.95 | .0768 | 1.95 | 11.2 | 36.7 | 6.95 | 10.34 |
| 22 | 7 | 30 | .0299 | 0.76 | .0693 | 1.76 | 18.1 | 59.4 | 5.46 | 8.12 |
| 22 | 19 | 35 | .0299 | 0.76 | .0693 | 1.76 | 18.1 | 59.4 | 5.24 | 7.80 |
| 24 | 7 | 32 | .0240 | 0.61 | .0634 | 1.61 | 28.7 | 94.2 | 4.16 | 6.19 |
| 24 | 19 | 36 | .0252 | 0.64 | .0646 | 1.64 | 28.7 | 94.2 | 4.36 | 6.49 |
| 26 | 7 | 34 | .0197 | 0.50 | .0591 | 1.50 | 45.8 | 150 | 3.40 | 5.06 |
| 26 | 19 | 38 | .0197 | 0.50 | .0591 | 1.50 | 45.8 | 150 | 3.45 | 5.13 |
