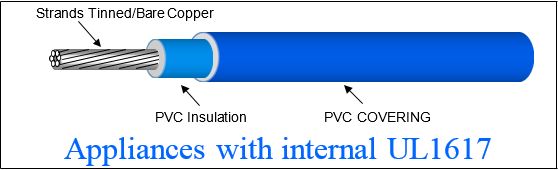

Electronic Hook Up Wire , Multilayer PVC Wire Style UL1617 Hook-up Wire
Internal wiring of Electric equipments. or where exposed to oil at a temperature not exceeding 105 ℃
Request a Quote for Style UL1617 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | MM | Inch | MM | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 1 | 259 | 25 | .3331 | 8.46 | .4236 | 10.76 | 0.1300 | 0.4268 | 288.91 | 429.83 |
| 2 | 259 | 26 | .2854 | 7.25 | .3760 | 9.55 | 0.1641 | 0.5384 | 217.04 | 322.91 |
| 4 | 133 | 25 | .2386 | 6 6.06 | .3291 | 8.36 | 0.2608 | 0.8559 | 156.47 | 232.80 |
| 6 | 266 | 30 | .1882 | 4.78 | .2787 | 7.08 | 0.4148 | 1.361 | 102.65 | 152.72 |
| 8 | 168 | 30 | .1496 | 3.80 | .2402 | 6.10 | 0.6795 | 2.23 | 69.13 | 102.85 |
| 10 | 105 | 30 | .1181 | 3.00 | .2087 | 5.30 | 1.08 | 3.55 | 46.97 | 69.89 |
| 12 | 65 | 30 | .0933 | 2.37 | .1839 | 4.67 | 1.72 | 5.64 | 32.47 | 48.31 |
| 14 | 41 | 30 | .0740 | 1.88 | .1646 | 4.18 | 2.73 | 8.96 | 23.37 | 34.77 |
| 16 | 26 | 30 | .0591 | 1.50 | .1496 | 3.80 | 4.45 | 14.6 | 17.42 | 25.92 |
| 18 | 16 | 30 | .0465 | 1.18 | .1370 | 3.48 | 7.06 | 23.2 | 13.21 | 19.66 |
| 20 | 10 | 30 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.70 | 15.92 |
| 20 | 21 | 33 | .0374 | 0.95 | .1280 | 3.25 | 11.2 | 36.7 | 10.72 | 15.95 |
| 22 | 17 | 34 | .0299 | 0.76 | .1205 | 3.06 | 18.1 | 59.4 | 8.88 | 13.21 |
| 22 | 7 | 30 | .0299 | 0.76 | .1217 | 3.09 | 18.1 | 59.4 | 9.17 | 13.64 |
| 24 | 7 | 32 | .0240 | 0.61 | .1146 | 2.91 | 28.7 | 94.2 | 7.61 | 11.32 |
| 24 | 11 | 34 | .0240 | 0.61 | .1146 | 2.91 | 28.7 | 94.2 | 7.62 | 11.33 |
| 26 | 7 | 34 | .0197 | 0.50 | .1102 | 2.80 | 45.8 | 150 | 6.74 | 10.02 |
| 28 | 7 | 36 | .0154 | 0.39 | .1031 | 2.62 | 69.3 | 227 | 5.73 | 8.53 |
| 30 | 1 | 30 | .0100 | 0.254 | .1006 | 2.55 | 110 | 361 | 5.32 | 7.91 |
