Electronic Hook Up Wire , Cross-linked Polyethylene (XLPE) Wire Style UL1505 Hook-up Wire

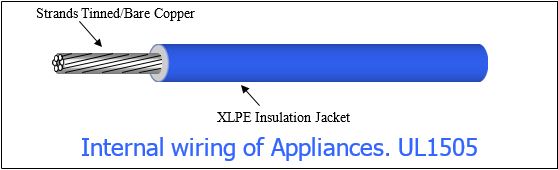

Internal wiring of electronic equipment.
Request a Quote for Style UL1505 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | .5197 | 13.20 | .6772 | 17.20 | 0.0525 | 0.1722 | 714.3 | 1062.74 |
| 3/0 | 259 | 22 | .4610 | 11.71 | .6185 | 15.71 | 0.0669 | 0.2194 | 573.21 | 852.83 |
| 2/0 | 259 | 23 | .4173 | 10.60 | .5748 | 14.6 | 0.0814 | 0.2670 | 477.77 | 710.83 |
| 1/0 | 259 | 24 | .3657 | 9.29 | .5232 | 13.29 | 0.1026 | 0.3367 | 377.53 | 561.68 |
| 1 | 259 | 25 | .3331 | 8.46 | .4906 | 12.46 | 0.1300 | 0.4268 | 319.52 | 475.38 |
| 2 | 259 | 26 | .2854 | 7.25 | .4051 | 10.29 | 0.1641 | 0.5384 | 225.47 | 335.45 |
| 4 | 133 | 25 | .2386 | 6.06 | .3646 | 9.26 | 0.2608 | 0.8559 | 168.77 | 251.10 |
| 6 | 266 | 30 | .1882 | 4.78 | .3142 | 7.98 | 0.4148 | 1.361 | 113.16 | 168.36 |
| 8 | 168 | 30 | .1496 | 3.80 | .2756 | 7.00 | 0.6795 | 2.23 | 78.27 | 116.46 |
| 10 | 105 | 30 | .1181 | 3.00 | .2126 | 5.40 | 1.08 | 3.55 | 47.80 | 71.12 |
| 12 | 65 | 30 | .0933 | 2.37 | .1878 | 4.77 | 1.72 | 5.64 | 33.20 | 49.40 |
| 14 | 41 | 30 | .0740 | 1.88 | .1685 | 4.28 | 2.73 | 8.96 | 24.03 | 35.75 |
| 16 | 7 | 25 | .0591 | 1.50 | .1378 | 3.50 | 4.45 | 14.6 | 16.07 | 23.90 |
| 16 | 26 | 30 | .0591 | 1.50 | .1378 | 3.50 | 4.45 | 14.6 | 15.72 | 23.39 |
| 18 | 1 | 18 | .0402 | 1.02 | .1189 | 3.02 | 6.77 | 22.2 | 11.21 | 16.67 |
| 18 | 7 | 26 | .0465 | 1.18 | .1252 | 3.18 | 7.06 | 23.2 | 11.82 | 17.58 |
| 18 | 16 | 30 | .0465 | 1.18 | .1252 | 3.18 | 7.06 | 23.2 | 11.67 | 17.36 |
| 20 | 1 | 20 | .0320 | 0.813 | .1107 | 2.81 | 10.7 | 35.2 | 8.76 | 13.04 |
| 20 | 10 | 30 | .0374 | 0.95 | .1161 | 2.95 | 11.2 | 36.7 | 9.26 | 13.78 |
| 20 | 21 | 33 | .0374 | 0.95 | .1161 | 2.95 | 11.2 | 36.7 | 9.28 | 13.81 |
