Electronic Hook Up Wire , PVC Nylon Jacket Wire Style UL1452 Hook-up Wire
Internal wiring of Appliances or electronic equipments where exposed to temperature not exceeding 90℃.
Request a Quote for Style UL1452 Hook-up Wire

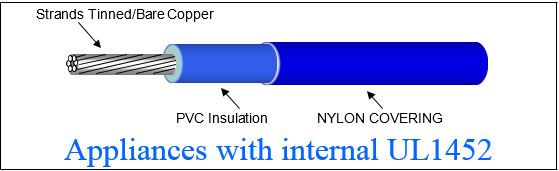

- Conductor material of Tinned or Bare copper
- Rated temperature 90 ℃
- Rated Voltage 1000 V (Spark voltage 10000 V)
- Flame resistance FT2
- RoHS Compliant
- Covering of Nylon 4 mils
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 12 | 65 | 30 | .0933 | 2.37 | .1311 | 3.33 | 1.72 | 5.64 | 24.23 | 35.94 |
| 14 | 19 | 27 | .0740 | 1.88 | .1118 | 2.84 | 2.73 | 8.96 | 16.18 | 24.01 |
| 14 | 41 | 30 | .0740 | 1.88 | .1118 | 2.84 | 2.73 | 8.96 | 16.11 | 23.92 |
| 16 | 1 | 16 | .0512 | 1.30 | .0890 | 2.26 | 4.26 | 14.00 | 10.70 | 15.88 |
| 16 | 19 | 29 | .0591 | 1.50 | .0969 | 2.46 | 4.45 | 14.6 | 11.10 | 16.47 |
| 16 | 26 | 30 | .0591 | 1.50 | .0969 | 2.46 | 4.45 | 14.6 | 10.94 | 16.24 |
| 18 | 1 | 18 | .0402 | 1.02 | .0780 | 1.98 | 6.77 | 22.2 | 7.19 | 10.67 |
| 18 | 7 | 26 | .0465 | 1.18 | .0843 | 2.14 | 7.06 | 23.2 | 7.54 | 11.20 |
| 18 | 19 | 31 | .0465 | 1.18 | .0843 | 2.14 | 7.06 | 23.2 | 7.47 | 11.09 |
| 20 | 1 | 20 | .0320 | 0.813 | .0698 | 1.77 | 10.7 | 35.2 | 5.09 | 7.53 |
| 20 | 7 | 29 | .0374 | 0.95 | .0752 | 1.91 | 11.2 | 36.7 | 5.40 | 8.01 |
| 20 | 19 | 33 | .0374 | 0.95 | .0752 | 1.91 | 11.2 | 36.7 | 5.40 | 8.01 |
| 22 | 1 | 22 | .0252 | 0.64 | .0630 | 1.60 | 17.2 | 56.4 | 3.63 | 5.38 |
| 22 | 7 | 30 | .0299 | 0.76 | .0677 | 1.72 | 18.1 | 59.4 | 4.16 | 6.16 |
| 22 | 19 | 35 | .0299 | 0.76 | .0677 | 1.72 | 18.1 | 59.4 | 3.89 | 5.77 |
| 24 | 1 | 24 | .0201 | 0.51 | .0579 | 1.47 | 27.3 | 89.3 | 2.72 | 4.03 |
| 24 | 7 | 32 | .0240 | 0.61 | .0618 | 1.57 | 28.7 | 94.2 | 2.97 | 4.39 |
| 24 | 19 | 36 | .0240 | 0.61 | .0618 | 1.57 | 28.7 | 94.2 | 2.97 | 4.39 |
| 26 | 1 | 26 | .0157 | 0.40 | .0535 | 1.36 | 43.5 | 143 | 2.08 | 3.08 |
| 26 | 7 | 34 | .0197 | 0.50 | .0575 | 1.46 | 45.8 | 150 | 2.32 | 3.44 |
| 26 | 19 | 38 | .0197 | 0.50 | .0575 | 1.46 | 45.8 | 150 | 2.37 | 3.51 |
