High Temperature Wire , PTFE Insulated Wire Style UL1371 Hook-up Wire

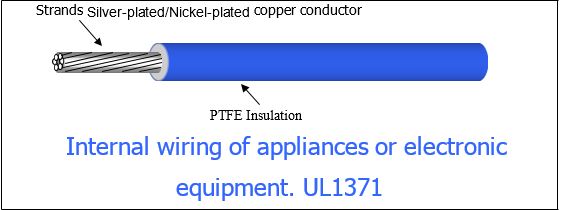

Internal wiring of appliances and electronic equipment
Request a Quote for Style UL1371 Hook-up Wire
- Conductor material Tinned or Bare copper
- Rated temperature 105 ℃
- Spark voltage 1500 V
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
6 | 266 | 30 | .1882 | 4.78 | .2276 | 5.78 | 0.4148 | 1.361 | 94.95 | 141.26 |
8 | 168 | 30 | .1496 | 3.80 | .1890 | 4.80 | 0.6795 | 2.23 | 62.43 | 92.88 |
10 | 19 | 23 | .1209 | 3.07 | .1469 | 3.73 | 1.08 | 3.55 | 39.29 | 58.46 |
12 | 19 | 25 | .0906 | 2.30 | .1165 | 2.96 | 1.72 | 5.64 | 23.10 | 34.37 |
14 | 19 | 27 | .0740 | 1.88 | .1000 | 2.54 | 2.73 | 8.96 | 16.34 | 24.31 |
16 | 1 | 16 | .0512 | 1.30 | .0669 | 1.70 | 4.26 | 14.0 | 9.55 | 14.21 |
16 | 19 | 29 | .0591 | 1.50 | .0748 | 1.90 | 4.45 | 14.6 | 9.85 | 14.66 |
18 | 1 | 18 | .0402 | 1.02 | .0559 | 1.42 | 6.77 | 22.2 | 6.18 | 9.20 |
18 | 7 | 26 | .0465 | 1.18 | .0622 | 1.58 | 7.06 | 23.2 | 6.46 | 9.62 |
18 | 19 | 31 | .0465 | 1.18 | .0622 | 1.58 | 7.06 | 23.2 | 6.39 | 9.51 |
20 | 1 | 20 | .0320 | 0.813 | .0430 | 1.09 | 10.7 | 35.2 | 3.82 | 5.68 |
20 | 7 | 29 | .0374 | 0.95 | .0484 | 1.23 | 11.2 | 36.7 | 4.03 | 6.00 |
20 | 19 | 33 | .0374 | 0.95 | .0484 | 1.23 | 11.2 | 36.7 | 4.03 | 6.00 |
22 | 1 | 22 | .0252 | 0.64 | .0362 | 0.92 | 17.2 | 56.4 | 2.50 | 3.72 |
22 | 7 | 30 | .0299 | 0.76 | .0409 | 1.04 | 18.1 | 59.4 | 2.89 | 4.30 |
22 | 19 | 35 | .0299 | 0.76 | .0409 | 1.04 | 18.1 | 59.4 | 2.67 | 3.98 |
24 | 1 | 24 | .0201 | 0.51 | .0311 | 0.79 | 27.3 | 89.3 | 1.70 | 2.53 |
24 | 7 | 32 | .0240 | 0.61 | .0350 | 0.89 | 28.7 | 94.2 | 1.86 | 2.77 |
24 | 19 | 36 | .0240 | 0.61 | .0350 | 0.89 | 28.7 | 94.2 | 1.86 | 2.77 |
26 | 1 | 26 | .0157 | 0.40 | .0268 | 0.68 | 43.5 | 143 | 1.15 | 1.70 |
26 | 7 | 34 | .0197 | 0.50 | .0307 | 0.78 | 45.8 | 150 | 1.31 | 1.95 |
26 | 19 | 38 | .0197 | 0.50 | .0307 | 0.78 | 45.8 | 150 | 1.36 | 2.02 |
28 | 1 | 28 | .0126 | 0.32 | .0236 | 0.60 | 69.3 | 227 | 0.81 | 1.21 |
30 | 1 | 30 | .0100 | 0.254 | .0210 | 0.53 | 110 | 361 | 0.59 | 0.87 |
