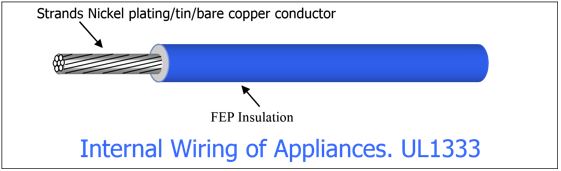

High Temperature Wire , FEP Insulated Wire Style UL1333 Hook-up Wire
Internal wiring of appliances and electronic equipment, Suitable for immersion in gasoline; gasoline vapor; 80℃in oil; and or 600 Volts peak for electronics use only.
Request a Quote for Style UL1333 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 150 ℃
- Rated voltage 300 V (Spark voltage 3000 V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 10 | 19 | 23 | .1209 | 3.07 | .1484 | 3.77 | 1.08 | 3.55 | 39.51 | 58.63 |
| 12 | 19 | 25 | .0906 | 2.30 | .1181 | 3.00 | 1.72 | 5.64 | 23.41 | 34.82 |
| 14 | 19 | 27 | .0740 | 1.88 | .1000 | 2.54 | 2.73 | 8.96 | 16.22 | 24.07 |
| 16 | 1 | 16 | .0512 | 1.30 | .0772 | 1.96 | 4.26 | 14.0 | 10.67 | 15.84 |
| 16 | 19 | 29 | .0591 | 1.50 | .0850 | 2.16 | 4.45 | 14.6 | 11.09 | 16.46 |
| 16 | 26 | 30 | .0591 | 1.50 | .0850 | 2.16 | 4.45 | 14.6 | 10.94 | 16.23 |
| 18 | 1 | 18 | .0402 | 1.02 | .0661 | 1.68 | 6.77 | 22.2 | 7.14 | 10.58 |
| 18 | 7 | 26 | .0465 | 1.18 | .0724 | 1.84 | 7.06 | 23.2 | 7.52 | 11.14 |
| 18 | 19 | 31 | .0465 | 1.18 | .0724 | 1.84 | 7.06 | 23.2 | 7.43 | 11.03 |
| 20 | 1 | 20 | .0320 | 0.813 | .0580 | 1.47 | 10.7 | 35.2 | 5.00 | 7.41 |
| 20 | 7 | 29 | .0374 | 0.95 | .0634 | 1.61 | 11.2 | 36.7 | 5.33 | 7.91 |
| 20 | 19 | 33 | .0374 | 0.95 | .0634 | 1.61 | 11.2 | 36.7 | 5.33 | 7.91 |
| 22 | 1 | 22 | .0252 | 0.64 | .0512 | 1.30 | 17.2 | 56.4 | 3.52 | 5.22 |
| 22 | 7 | 30 | .0299 | 0.76 | .0559 | 1.42 | 18.1 | 59.4 | 4.07 | 6.02 |
| 22 | 19 | 35 | .0299 | 0.76 | .0559 | 1.42 | 18.1 | 59.4 | 3.81 | 5.63 |
| 24 | 1 | 24 | .0201 | 0.51 | .0461 | 1.17 | 27.3 | 89.3 | 2.59 | 3.85 |
| 24 | 7 | 32 | .0240 | 0.61 | .0500 | 1.27 | 28.7 | 94.2 | 2.85 | 4.23 |
| 24 | 19 | 36 | .0240 | 0.61 | .0500 | 1.27 | 28.7 | 94.2 | 2.85 | 4.23 |
| 26 | 7 | 34 | .0197 | 0.50 | .0457 | 1.16 | 45.8 | 150 | 2.19 | 3.25 |
| 26 | 19 | 38 | .0197 | 0.50 | .0457 | 1.16 | 45.8 | 150 | 2.24 | 3.33 |
| 28 | 1 | 28 | .0126 | 0.32 | .0386 | 0.98 | 69.3 | 227 | 1.53 | 2.28 |
| 30 | 1 | 30 | .0100 | 0.254 | .0360 | 0.91 | 110 | 361 | 1.26 | 1.85 |
