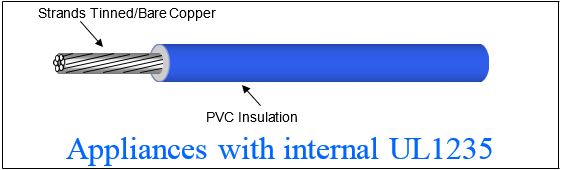

Electronic Hook Up Wire , PVC Insulated Wire Style UL1235 Hook-up Wire
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 105℃Whichever is applicable, The most popular hookup wire for Electric.
Request a Quote for Style UL1235 Hook-up Wire
- Conductor material of tinned or bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
8 | 168 | 30 | 0.1496 | 3.8 | 0.2693 | 6.84 | 0.4148 | 2.23 | 76.56 | 113.9 |
10 | 105 | 30 | 0.1181 | 3 | 0.2378 | 6.04 | 1.08 | 3.55 | 53.48 | 79.57 |
12 | 65 | 30 | 0.0933 | 2.37 | 0.213 | 5.41 | 1.72 | 5.64 | 38.26 | 56.92 |
14 | 41 | 30 | 0.074 | 1.88 | 0.1937 | 4.92 | 2.73 | 8.96 | 28.59 | 42.54 |
16 | 7 | 25 | 0.0591 | 1.5 | 0.1787 | 4.54 | 4.45 | 14.6 | 22.55 | 33.55 |
16 | 26 | 30 | 0.0591 | 1.5 | 0.1787 | 4.54 | 4.45 | 14.6 | 22.21 | 33.04 |
18 | 1 | 18 | 0.0402 | 1.02 | 0.1598 | 4.06 | 6.77 | 22.2 | 16.92 | 25.17 |
18 | 7 | 26 | 0.0465 | 1.18 | 0.1661 | 4.22 | 7.06 | 23.2 | 17.79 | 26.47 |
18 | 16 | 30 | 0.0465 | 1.18 | 0.1661 | 4.22 | 7.06 | 23.2 | 17.63 | 26.24 |
