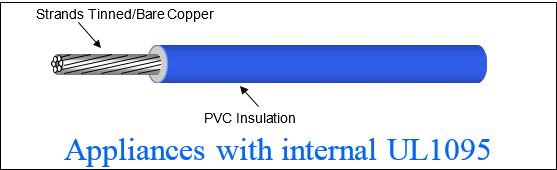

Electronic Hook Up Wire , PVC Insulated Wire Style UL1095 Hook-up Wire

Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 80°C Whichever is applicable.

Request a Quote for Style UL1095 Hook-up Wire

UL1095

    Conductor material of tinned or bare copper

  • Rated temperature 80°C
  • Rated Voltage 300 V (Spark voltage 3000 V)
  • Flame resistance VW-1 and FT1
  • RoHS Compliant

Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available

Gauge (AWG)Number of
Strands		Gauge of
Strands (AWG)
Nom. Dia. of
Stranded Conductor		Nom. Fin.
Wire Diam.		Max. Resistance
(dc at 20°C) Ohm/per		Nom. wt.
InchmmInchmm1000-ftKmLBS./ 1000 ft.Kg/Km
16
7
25
0.0591
1.5
0.0827
2.1
4.45
14.6
9.99
14.86
16
26
30
0.0591
1.5
0.0827
2.1
4.45
14.6
9.64
14.34
16
19
29
0.0591
1.5
0.0827
2.1
4.45
14.6
9.8
14.57
18
1
18
0.0402
1.02
0.0638
1.62
6.77
22.2
6.17
9.18
18
7
26
0.0465
1.18
0.0701
1.78
7.06
23.2
6.43
9.57
18
16
30
0.0465
1.18
0.0701
1.78
6.77
22.2
6.28
9.34
18
19
31
0.0465
1.18
0.0701
1.78
7.06
23.2
6.36
9.46
20
1
20
0.032
0.813
0.0556
1.41
10.7
35.2
4.17
6.21
20
10
30
0.0374
0.95
0.061
1.55
11.2
36.7
4.37
6.51
20
19
33
0.0374
0.95
0.061
1.55
11.2
36.7
4.42
6.58
20
21
33
0.0374
0.95
0.061
1.55
11.2
36.7
4.39
6.54
22
7
30
0.0299
0.76
0.0547
1.39
18.1
59.4
3.26
4.85
22
17
34
0.0299
0.76
0.0535
1.36
18.1
59.4
3.05
4.54
24
11
34
0.024
0.61
0.0476
1.21
28.7
94.2
2.18
3.25
26
7
34
0.0197
0.5
0.0433
1.1
45.8
150
1.6
2.37
28
7
36
0.0154
0.39
0.0362
0.92
69.3
227
1.06
1.58
30
1
30
0.01
0.254
0.0336
0.85
110
361
0.82
1.22
