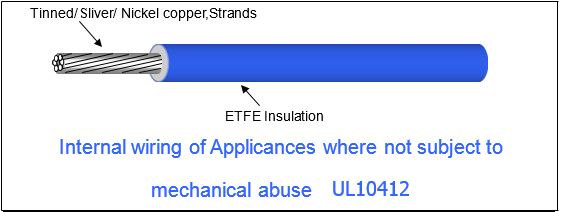

High Temperature Wire , ETFE Insulated Wire Style UL10412 Hook-up Wire
Internal wiring of Appliances or electronic equipment
Request a Quote for Style UL10412 Hook-up Wire
- Conductor material of Tinned or Bare copper
- Rated temperature 150 ℃
- Rated voltage 600V (Spark voltage 6000V)
- Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per |
|||
| Inch | mm | Inch | mm | 1000-ft | Km | |||
| 10 | 19 | 23 | .1205 | 3.06 | .1362 | 3.46 | 1.08 | 3.54 |
| 12 | 19 | 25 | .0929 | 2.36 | .1087 | 2.76 | 1.72 | 5.64 |
| 14 | 19 | 27 | .0728 | 1.85 | .0866 | 2.20 | 2.73 | 8.96 |
| 16 | 19 | 9 | .0591 | 1.51 | .0717 | 1.82 | 4.45 | 14.6 |
| 18 | 1 | 18 | .0402 | 1.02 | .0531 | 1.35 | 6.77 | 22.2 |
| 18 | 7 | 26 | .0465 | 1.18 | .0591 | 1.50 | 7.07 | 23.2 |
| 18 | 19 | 31 | .0465 | 1.18 | .0591 | 1.50 | 7.07 | 23.2 |
| 20 | 1 | 20 | .0319 | 0.81 | .0445 | 1.13 | 10.73 | 35.2 |
| 20 | 7 | 29 | .0374 | 0.95 | .0500 | 1.27 | 11.19 | 36.7 |
| 20 | 19 | 33 | .0374 | 0.95 | .0500 | 1.27 | 11.19 | 36.7 |
| 22 | 1 | 22 | .0252 | 0.64 | .0394 | 1.00 | 17.20 | 56.4 |
| 22 | 7 | 30 | .0299 | 0.76 | .0433 | 1.10 | 18.11 | 59.4 |
| 22 | 19 | 35 | .0299 | 0.76 | .0433 | 1.10 | 18.11 | 59.4 |
| 24 | 1 | 24 | .0201 | 0.51 | .0335 | 0.85 | 27.23 | 89.3 |
| 24 | 7 | 32 | .0236 | 0.60 | .0362 | 0.92 | 28.72 | 94.2 |
| 24 | 19 | 36 | .0236 | 0.60 | .0362 | 0.92 | 28.72 | 94.2 |
| 26 | 7 | 34 | .0189 | 0.48 | .0315 | 0.80 | 45.73 | 150 |
| 28 | 1 | 28 | .0126 | 0.32 | .0256 | 0.65 | 69.21 | 227 |
| 28 | 7 | 36 | .0150 | 0.38 | .0276 | 0.70 | 72.87 | 239 |
| 30 | 1 | 30 | .0098 | 0.25 | .0224 | 0.57 | 110 | 361 |
