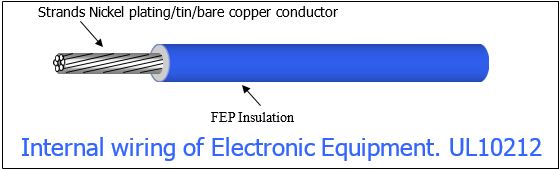

High Temperature Wire , FEP Insulated Wire Style UL10212 Hook-up Wire
Internal wiring of appliances and electronic equipment
Request a Quote for Style UL10212 Hook-up Wire
- Conductor material of Tinned copper
- Rated temperature 80 ℃
- Rated voltage 30 V (Spark voltage 1500 V)
- Flame resistance VW-1 or FT1
- RoHS Complian
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 10 | 19 | 23 | .1209 | 3.07 | .1366 | 3.47 | 1.08 | 3.55 | 36.91 | 54.91 |
| 12 | 19 | 25 | .0906 | 2.30 | .1063 | 2.70 | 1.72 | 5.64 | 21.23 | 31.58 |
| 14 | 19 | 27 | .0740 | 1.88 | .0898 | 2.28 | 2.73 | 8.96 | 14.74 | 21.93 |
| 16 | 1 | 16 | .0512 | 1.30 | .0669 | 1.70 | 4.26 | 14.0 | 9.55 | 14.21 |
| 16 | 7 | 25 | .0591 | 1.50 | .0748 | 1.90 | 4.45 | 14.6 | 10.04 | 14.94 |
| 16 | 19 | 29 | .0591 | 1.50 | .0748 | 1.90 | 4.45 | 14.6 | 9.85 | 14.66 |
| 18 | 1 | 18 | .0402 | 1.02 | .0559 | 1.42 | 6.77 | 22.2 | 6.18 | 9.20 |
| 18 | 7 | 26 | .0465 | 1.18 | .0622 | 1.58 | 7.06 | 23.2 | 6.46 | 9.62 |
| 18 | 19 | 31 | .0465 | 1.18 | .0622 | 1.58 | 7.06 | 23.2 | 6.39 | 9.51 |
| 20 | 1 | 20 | .0320 | 0.813 | .0478 | 1.21 | 10.7 | 35.2 | 4.17 | 6.21 |
| 20 | 7 | 29 | .0362 | 0.92 | .0520 | 1.32 | 11.2 | 36.7 | 4.13 | 6.15 |
| 20 | 19 | 33 | .0374 | 0.95 | .0531 | 1.35 | 11.2 | 36.7 | 4.43 | 6.59 |
| 22 | 1 | 22 | .0252 | 0.64 | .0409 | 1.04 | 17.2 | 56.4 | 2.80 | 4.17 |
| 22 | 7 | 30 | .0299 | 0.76 | .0457 | 1.16 | 18.1 | 59.4 | 3.23 | 4.80 |
| 22 | 19 | 35 | .0299 | 0.76 | .0457 | 1.16 | 18.1 | 59.4 | 3.01 | 4.48 |
| 24 | 1 | 24 | .0201 | 0.51 | .0358 | 0.91 | 27.3 | 89.3 | 1.96 | 2.91 |
| 24 | 7 | 32 | .0240 | 0.61 | .0398 | 1.01 | 28.7 | 94.2 | 2.16 | 3.21 |
| 24 | 19 | 36 | .0252 | 0.64 | .0409 | 1.04 | 28.7 | 94.2 | 2.31 | 3.44 |
| 26 | 1 | 26 | .0157 | 0.40 | .0315 | 0.80 | 43.5 | 143 | 1.37 | 2.04 |
| 26 | 7 | 34 | .0197 | 0.50 | .0354 | 0.90 | 45.8 | 150 | 1.56 | 2.33 |
| 26 | 19 | 38 | .0197 | 0.50 | .0354 | 0.90 | 45.8 | 150 | 1.62 | 2.40 |
| 28 | 1 | 28 | .0126 | 0.32 | .0283 | 0.72 | 69.3 | 227 | 1.02 | 1.51 |
| 30 | 1 | 30 | .0100 | 0.254 | .0257 | 0.65 | 110 | 361 | 0.77 | 1.14 |
