Electronic Hook Up Wire , PVC Insulated Wire Style UL10198 Hook-up Wire
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 105℃Whichever is applicable, The most popular hookup wire for Electric.
Request a Quote for Style UL10198 Hook-up Wire

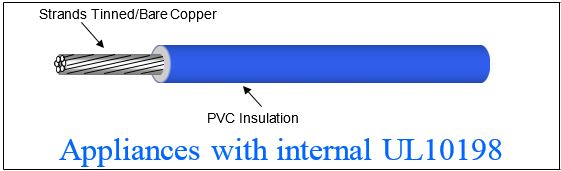

- Conductor material of tinned or bare copper
- Rated temperature 105 ℃
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. |
||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km |
|||
4/0 | 259 | 21 | 0.5197 | 13.2 | 0.622 | 15.8 | 0.0525 | 0.1722 | 678.47 | 1009.43 |
3/0 | 259 | 22 | 0.461 | 11.71 | 0.5634 | 14.31 | 0.0669 | 0.2194 | 540.62 | 804.33 |
2/0 | 259 | 23 | 0.4173 | 10.6 | 0.5197 | 13.2 | 0.0814 | 0.267 | 447.59 | 665.92 |
1/0 | 259 | 24 | 0.3657 | 9.29 | 0.4445 | 11.29 | 0.1026 | 0.3367 | 339.4 | 504.96 |
1 | 259 | 25 | 0.3331 | 8.46 | 0.4118 | 10.46 | 0.13 | 0.4268 | 283.97 | 422.49 |
2 | 259 | 26 | 0.2854 | 7.25 | 0.3469 | 8.81 | 0.1641 | 0.5384 | 206.5 | 307.23 |
4 | 133 | 25 | 0.2386 | 6.06 | 0.3 | 7.62 | 0.2608 | 0.8559 | 147.3 | 219.16 |
6 | 266 | 30 | 0.1882 | 4.78 | 0.2496 | 6.34 | 0.4148 | 1.361 | 94.95 | 141.26 |
8 | 168 | 30 | 0.1496 | 3.8 | 0.211 | 5.36 | 0.6795 | 2.23 | 62.55 | 93.06 |
10 | 105 | 30 | 0.1181 | 3 | 0.1575 | 4 | 1.08 | 3.55 | 37.6 | 55.94 |
12 | 65 | 30 | 0.0933 | 2.37 | 0.1327 | 3.37 | 1.72 | 5.64 | 24.37 | 36.25 |
14 | 41 | 30 | 0.074 | 1.88 | 0.1134 | 2.88 | 2.73 | 8.96 | 16.25 | 24.18 |
16 | 26 | 30 | 0.0591 | 1.5 | 0.0906 | 2.3 | 4.45 | 14.6 | 10.32 | 15.36 |
18 | 1 | 18 | 0.0402 | 1.02 | 0.0717 | 1.82 | 6.77 | 22.2 | 6.7 | 9.97 |
18 | 16 | 30 | 0.0465 | 1.18 | 0.078 | 1.98 | 6.77 | 22.2 | 6.86 | 10.21 |
20 | 1 | 20 | 0.032 | 0.813 | 0.0635 | 1.61 | 10.7 | 35.2 | 4.64 | 6.91 |
20 | 21 | 33 | 0.0374 | 0.95 | 0.0689 | 1.75 | 11.2 | 36.7 | 4.91 | 7.3 |
22 | 17 | 34 | 0.0299 | 0.76 | 0.0614 | 1.56 | 18.1 | 59.4 | 3.51 | 5.22 |
24 | 11 | 34 | 0.024 | 0.61 | 0.0555 | 1.41 | 28.7 | 94.2 | 2.59 | 3.85 |
26 | 7 | 34 | 0.0197 | 0.5 | 0.0512 | 1.3 | 45.8 | 150 | 1.97 | 2.93 |
28 | 1 | 28 | 0.0126 | 0.32 | 0.0441 | 1.12 | 69.3 | 227 | 1.38 | 2.05 |
28 | 7 | 36 | 0.0154 | 0.39 | 0.0469 | 1.19 | 72.8 | 239 | 1.52 | 2.26 |
30 | 1 | 30 | 0.01 | 0.254 | 0.0415 | 1.05 | 110 | 361 | 1.12 | 1.66 |
