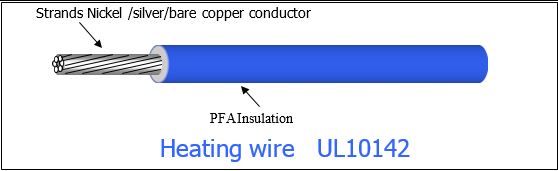

High Temperature Wire , PFA Insulated Wire Style UL10142 Hook-up Wire
Internal wiring of Appliances or electronic equipment.
Request a Quote for Style UL10142 Hook-up Wire
- Conductor material of Tinned, Silvered or Nickel copper
- Conductor material used only silvered or Nickel copper per ASTM B3/33 Rated temperature 250 ℃
- Rated voltage 600 V (Spark voltage 6000 V) Flame resistance VW-1 or FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4 – Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stockedItems
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 10 | 19 | 23 | .1209 | 3.07 | .1650 | 4.19 | 1.08 | 3.55 | 43.48 | 64.69 |
| 12 | 7 | 21 | .0906 | 2.30 | .1346 | 3.42 | 1.72 | 5.64 | 27.82 | 41.40 |
| 12 | 19 | 25 | .0906 | 2.30 | .1346 | 3.42 | 1.72 | 5.64 | 26.49 | 39.41 |
| 14 | 7 | 23 | .0740 | 1.88 | .1181 | 3.00 | 2.73 | 8.96 | 19.27 | 28.68 |
| *14 | 19 | 27 | .0740 | 1.88 | .1181 | 3.00 | 2.73 | 8.96 | 19.28 | 28.69 |
| 16 | 1 | 16 | .0512 | 1.30 | .0953 | 2.42 | 4.26 | 14.0 | 13.10 | 19.49 |
| 16 | 7 | 25 | .0591 | 1.50 | .1031 | 2.62 | 4.45 | 14.6 | 13.93 | 20.73 |
| *16 | 19 | 29 | .0591 | 1.50 | .1031 | 2.62 | 4.45 | 14.6 | 13.74 | 20.45 |
| 18 | 1 | 18 | .0402 | 1.02 | .0843 | 2.14 | 6.77 | 22.2 | 9.25 | 13.77 |
| 18 | 7 | 26 | .0465 | 1.18 | .0906 | 2.30 | 7.06 | 23.2 | 9.81 | 14.59 |
| *18 | 19 | 31 | .0465 | 1.18 | .0906 | 2.30 | 7.06 | 23.2 | 9.73 | 14.48 |
| 20 | 1 | 20 | .0320 | 0.813 | .0761 | 1.93 | 10.7 | 35.2 | 6.89 | 10.25 |
| *20 | 7 | 29 | .0374 | 0.95 | .0815 | 2.07 | 11.2 | 36.7 | 7.11 | 10.58 |
| *20 | 19 | 33 | .0374 | 0.95 | .0815 | 2.07 | 11.2 | 36.7 | 7.38 | 10.98 |
| 22 | 1 | 22 | .0252 | 0.64 | .0693 | 1.76 | 17.2 | 56.4 | 5.22 | 7.77 |
| *22 | 7 | 30 | .0299 | 0.76 | .0740 | 1.88 | 18.1 | 59.4 | 5.85 | 8.70 |
| *22 | 19 | 35 | .0299 | 0.76 | .0740 | 1.88 | 18.1 | 59.4 | 5.63 | 8.38 |
| 24 | 1 | 24 | .0201 | 0.51 | .0642 | 1.63 | 27.3 | 89.3 | 4.16 | 6.18 |
| *24 | 7 | 32 | .0240 | 0.61 | .0681 | 1.73 | 28.7 | 94.2 | 4.52 | 6.73 |
| *24 | 19 | 36 | .0240 | 0.61 | .0681 | 1.73 | 28.7 | 94.2 | 4.65 | 6.92 |
