Electronic Hook Up Wire , PVC Insulated Wire Style UL10070 Hook-up Wire
Internal wiring of electronic equipment.
Request a Quote for Style UL10070 Hook-up Wire

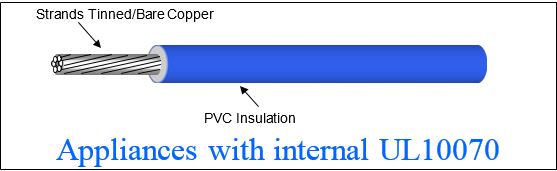

- Conductor material of Tinned or Bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000V)
- Flame resistance FT2
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | 0.5197 | 13.2 | 0.6772 | 17.2 | 0.05248 | 0.1722 | 714.3 | 1062.74 |
| 3/0 | 259 | 22 | 0.461 | 11.71 | 0.6185 | 15.71 | 0.06688 | 0.2194 | 573.21 | 852.83 |
| 2/0 | 259 | 23 | 0.4173 | 10.6 | 0.5748 | 14.6 | 0.0814 | 0.267 | 477.77 | 710.83 |
| 1/0 | 259 | 24 | 0.3657 | 9.29 | 0.5232 | 13.29 | 0.1026 | 0.3367 | 377.53 | 561.68 |
| 1 | 259 | 25 | 0.3295 | 8.37 | 0.487 | 12.37 | 0.13 | 0.4268 | 314.46 | 466.7 |
| 2 | 259 | 26 | 0.2854 | 7.25 | 0.4051 | 10.29 | 0.1641 | 0.5384 | 228.42 | 339.85 |
| 4 | 133 | 25 | 0.2386 | 6.06 | 0.3583 | 9.1 | 0.2608 | 0.8559 | 166.5 | 247.71 |
| 6 | 266 | 30 | 0.1882 | 4.78 | 0.3079 | 7.82 | 0.4148 | 1.361 | 111.2 | 165.45 |
| 8 | 168 | 30 | 0.1496 | 3.8 | 0.2402 | 6.1 | 0.6795 | 2.23 | 69.3 | 102.85 |
| 10 | 105 | 30 | 0.1181 | 3 | 0.1795 | 4.56 | 1.08 | 3.55 | 41.41 | 61.47 |
| 12 | 65 | 30 | 0.0933 | 2.37 | 0.1547 | 3.93 | 1.72 | 5.64 | 27.6 | 40.97 |
| 14 | 41 | 30 | 0.074 | 1.88 | 0.1354 | 3.44 | 2.73 | 8.96 | 19.05 | 28.26 |
| 16 | 26 | 30 | 0.0591 | 1.5 | 0.1205 | 3.06 | 4.45 | 14.6 | 13.52 | 20.06 |
| 18 | 1 | 18 | 0.0402 | 1.02 | 0.1016 | 2.58 | 6.77 | 22.2 | 9.32 | 13.83 |
| 18 | 16 | 30 | 0.0465 | 1.18 | 0.1079 | 2.74 | 7.06 | 23.2 | 9.66 | 14.35 |
