Electronic Hook Up Wire , PVC Insulated Wire Style UL1007 Hook-up Wire
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 80°C Whichever is applicable.
Request a Quote for Style UL1007 Hook-up Wire
UL1007

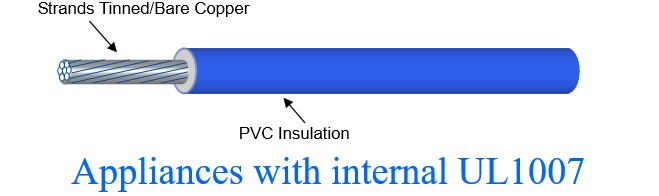

- Conductor material of tinned or bare copper
- Rated temperature 80°C
- Rated Voltage 300 V (Spark voltage 3000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
16 | 7 | 25 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.74 | 15.93 |
16 | 26 | 30 | .0591 | 1.50 | .0906 | 2.30 | 4.45 | 14.6 | 10.35 | 15.36 |
18 | 1 | 18 | .0402 | 1.02 | .0717 | 1.82 | 6.77 | 22.2 | 6.72 | 9.97 |
18 | 7 | 26 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 7.03 | 10.44 |
18 | 16 | 30 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 6.88 | 10.21 |
18 | 41 | 34 | .0465 | 1.18 | .0780 | 1.98 | 7.06 | 23.2 | 6.94 | 10.33 |
20 | 1 | 20 | .0320 | 0.813 | .0635 | 1.61 | 10.7 | 35.2 | 4.67 | 6.91 |
20 | 7 | 29 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.91 | 7.27 |
20 | 10 | 30 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.91 | 7.27 |
20 | 23 | 33 | .0374 | 0.95 | .0689 | 1.75 | 11.2 | 36.7 | 4.93 | 7.30 |
22 | 7 | 30 | .0299 | 0.76 | .0614 | 1.56 | 18.1 | 59.4 | 3.74 | 5.54 |
22 | 17 | 34 | .0299 | 0.76 | .0614 | 1.56 | 18.1 | 59.4 | 3.52 | 5.22 |
24 | 7 | 32 | .0240 | 0.61 | .0555 | 1.41 | 28.7 | 94.2 | 2.58 | 3.84 |
24 | 11 | 34 | .0240 | 0.61 | .0555 | 1.41 | 28.7 | 94.2 | 2.61 | 3.85 |
26 | 7 | 34 | .0197 | 0.50 | .0512 | 1.30 | 45.8 | 150 | 1.97 | 2.93 |
28 | 7 | 36 | .0154 | 0.39 | .0469 | 1.19 | 72.8 | 239 | 1.53 | 2.26 |
30 | 1 | 30 | .0100 | 0.254 | .0415 | 1.05 | 110 | 361 | 1.13 | 1.66 |
