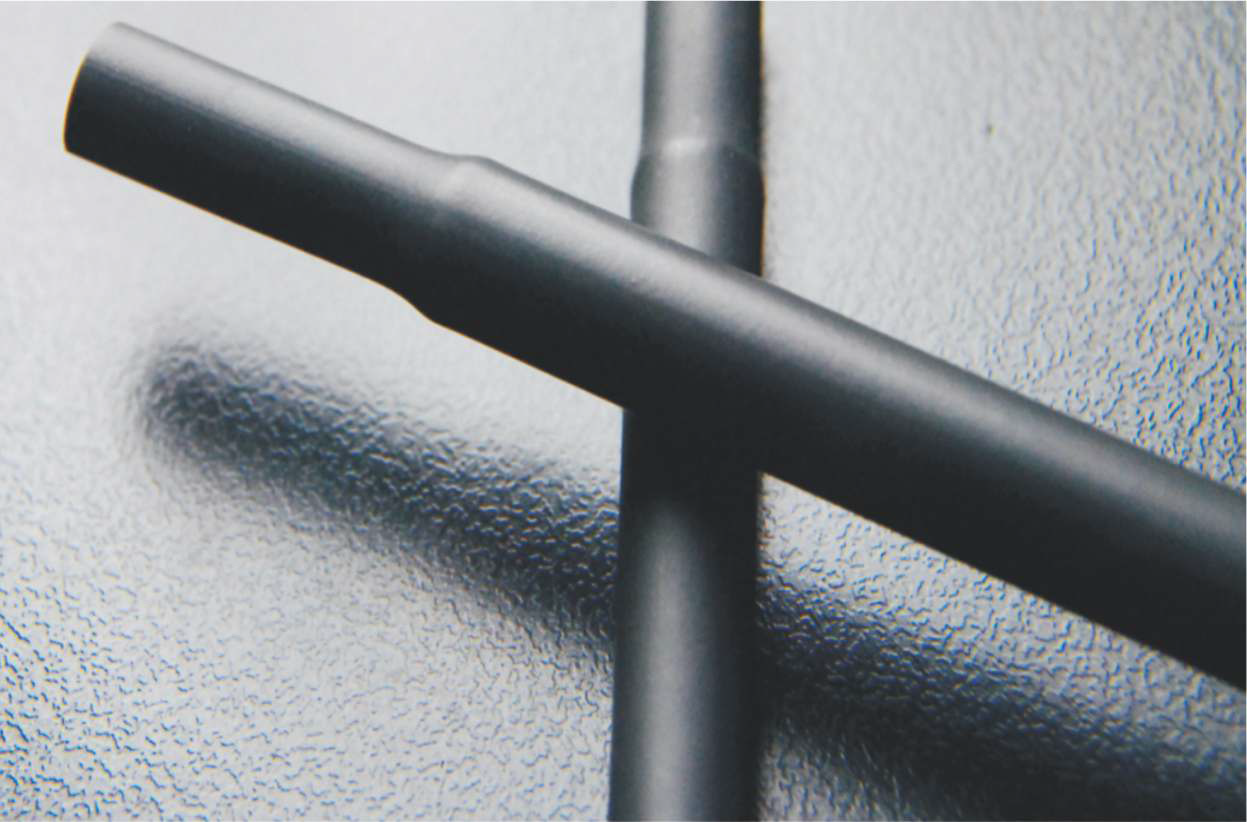

High-Temperature Resistant Heat Shrink Tubing FT-SIL200H 1.7:1 Ratio Very Flexible Silicon rubber tubing
It is generally used for cables in medical equipments, home appliances, aerospace, military, automobile manufacturing, electronic components, transformers, motors where extreme physical strength and high temperature are required.
Request a Quote for FT-SIL200H 1.7:1 Ratio Very Flexible Silicon rubber tubing
- Shrink ratio: 1.7:1
- Working temperature: -50℃~+200℃
- Shrink temperature: complete shrink at 220℃
- Oil resistance and chemical resistance
- Flexibility at high and low temperatures without cracking
| As supplied (mm) | After Recovery (mm) | Standard Packing | ||
| I.D. | W.T. | I.D. | W.T. | m/spool |
| 1 | 0.80±0.15 | ≤0.6 | 1.10±0.15 | 200 |
| 2 | 0.80±0.15 | ≤1.2 | 1.10±0.15 | 200 |
| 3 | 0.80±0.15 | ≤1.8 | 1.10±0.15 | 200 |
| 4 | 0.80±0.15 | .2.5 | 1.10±0.15 | 200 |
| 5 | 0.80±0.15 | ≤3.0 | 1.10±0.15 | 100 |
| 6 | 0.80±0.15 | .3.8 | 1.10±0.15 | 100 |
| 7 | 0.80±0.15 | ≤4.0 | 1.10±0.15 | 100 |
| 8 | 0.80±0.15 | ≤4.8 | 1.10±0.15 | 100 |
| 9 | 0.80±0.15 | .5.0 | 1.10±0.15 | 100 |
| 10 | 1.50±0.15 | ≤6.5 | 2.50±0.15 | 50 |
| 12 | 1.50±0.15 | ≤7.0 | 2.50±0.15 | 50 |
| 15 | 1.50±0.15 | ≤9.0 | 1.10±0.15 | 50 |
| 20 | 1.50±0.15 | ≤13 | 2.50±0.15 | 25 |
| 25 | 1.50±0.15 | ≤15 | 2.50±0.15 | 25 |
| 30 | 1.50±0.15 | ≤18 | 2.50±0.15 | 25 |
| 35 | 1.50±0.15 | ≤20 | 2.50±0.15 | 25 |
| 40 | 1.50±0.15 | ≤25 | 2.50±0.15 | 25 |
