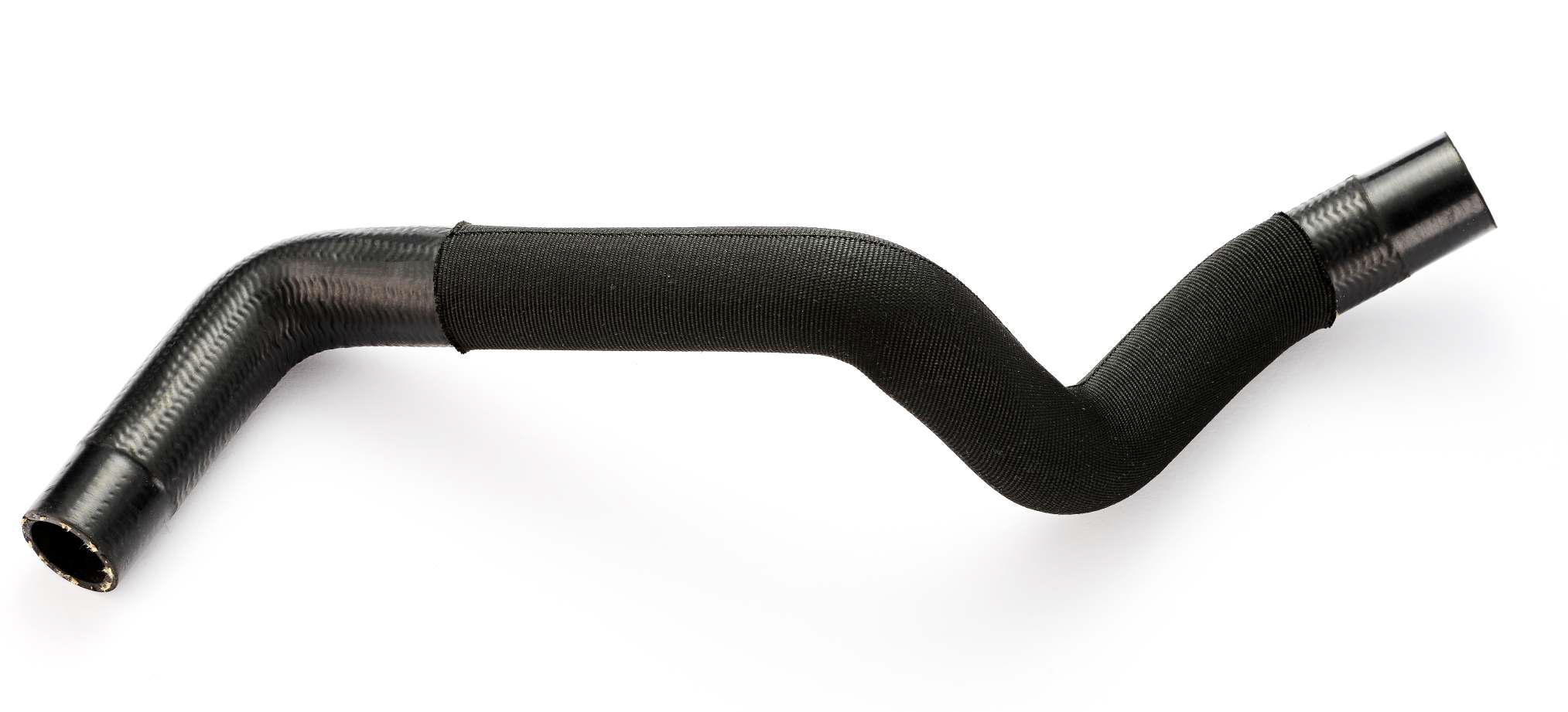

Heat Shrink Tubing for Automotive FT-HTS Heat shrink textile sleeve
FT-HSS heat shrinkable textile sleeve consists of polyester multifilament and special modified polyolefin monofilament, the shrink ratio is 2:1, the special woven construction makes it very flexible, it can be easily cover on the hoses with irregular shapes. It is suitable for used in rough environments, providing excellent abrasion resistance and noise reduction.It is widely used to protect the automotive rubber hoses, aircondition pipes, wire harnesses for anti abrasion, noisy reduction and fuel resistance.
Request a Quote for FT-HTS Heat shrink textile sleeve
Technical data
| Material | Polyolefin and polyester |
| Working temperature | - 40℃- + 125℃ |
| Shrink temperature | 110℃~185℃ |
| Flammability | FMVSS302 |
| Color | black |
| Shrink ratio | 2:1 |
| Approval | RoHS, Approval Halogen Free |
| Tool | Heat gun, oven |
| As Supplied(mm) | After Recovery | Packing |
| (D) | (d) | (m/spool) |
| 10 | 5.0 | 100 |
| 20 | 10.0 | 100 |
| 25 | 12.5 | 100 |
| 30 | 15.0 | 100 |
| 34 | 17.0 | 100 |
| 40 | 20.0 | 50 |
| 50 | 25.0 | 50 |
| 60 | 30.0 | 50 |
| 70 | 35.0 | 50 |
| 80 | 40.0 | 50 |
