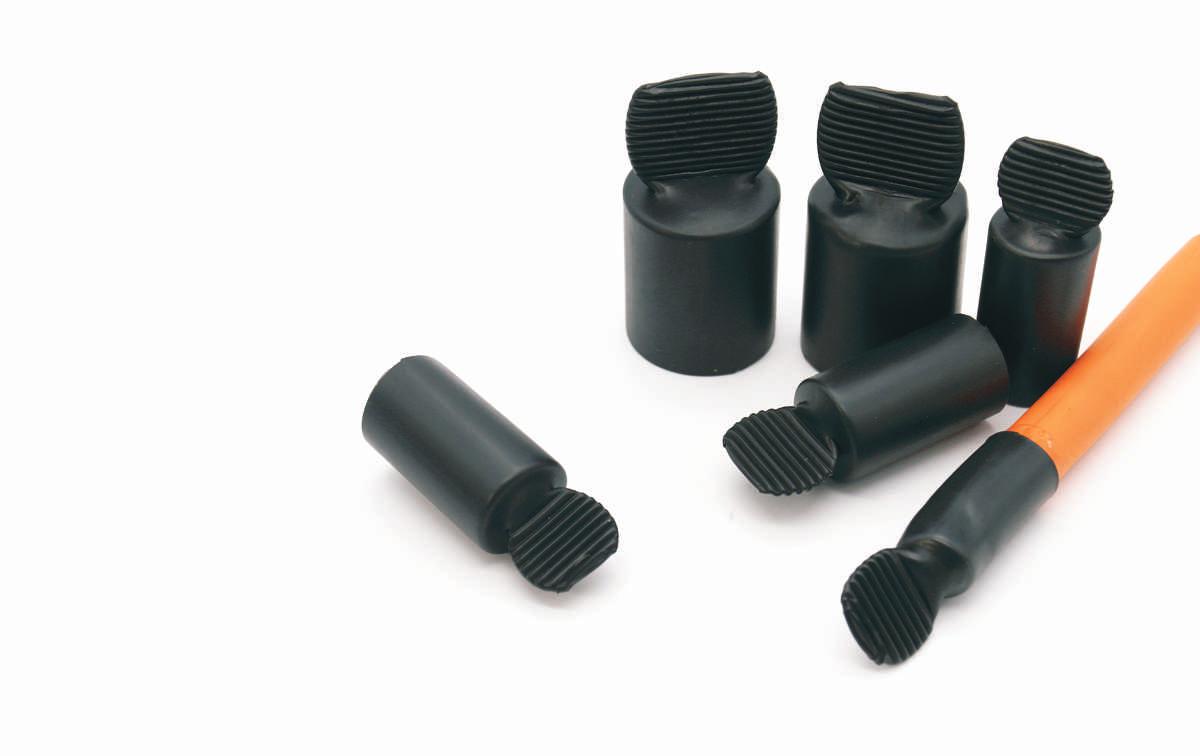

Heat Shrink Molded Product and Sleeves FT-CEC Heat shrink cable end caps
Heat Shrink Semi-rigid, Adhesive-Lined Cable End Caps Heat shrink end caps are a simple yet effective method for sealing cable ends, pipe, conduit or other similar objects.
Typical Applications : Watertight sealing of cable ends and pipe conduit
Standards : Rated for 600/1000V
Request a Quote for FT-CEC Heat shrink cable end caps
- 3:1 shrink ratio
- Resistant to common fluids and solvents
- Superior resistance to weathering ,moisture contamination and adverse environmental conditions
- Standard adhesive liner provides complete environmental protection
and insulation - Heat indicating lines
- Resistant to common fluids and solvents
- Coated hot melt adhesive resists pull-off
- Shrink temperature :120℃
- Continuous operating temperature: -55℃ to 110℃
Technical Data
Adhesive
| Property | Test Method | Stantard | Typical Performance |
| Tensile Strengtn(MPa) | ASTM D2671 | ≥ 10.4 | 11.5 |
| Elongation(%) | ASTM D2671 | ≥ 300 | 450 |
| Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥ 7.3 | 8.5 |
| Elongation after aging(%) | UL224 158℃X168hr | ≥ 200 | 350 |
| Dieletric strength(kv/mm) | IEC243 | ≥ 15 | 17.5 |
| Volume resistivity(Ω.cm) | A STM D876 | ≥1X1014 | 2.5X1014 |
Adhesive
| Property | Test Method | Stantard |
| Water Absorption | ASTM D570 | ≤ 0.2% |
| Sofening Point°C | ASTM E28 | 90 ±5 |
| Strength of pearing(PE) | ASTM D 1000 | 120N/25mm |
| Strength of pearing(AL) | ASTM D 1000 | 80N/25mm |
| Expanded Length (Nom) | Expanded | Recoverd | General Use Diameter | Cable Range | ||||||
| Internal Diameter Min | Wall Thickness Nom-W | Internal Diameter Max-d | ||||||||
| mm | IN | mm | IN | mm | IN | mm | IN | mm | IN | AWG/MCM |
| 50.80 | 2.00 | 10.20 | 0.40 | 2.00 | 0.080 | 3.80 | 0.15 | 4.5-8.5 | 0.18-0.34 | #8-#1 |
| 63.50 | 2.50 | 19.10 | 0.75 | 2.00 | 0.080 | 5.60 | 0.22 | 6-16.5 | 0.24-0.65 | #2-4/0 |
| 76.20 | 3.00 | 27.90 | 1.10 | 2.40 | 0.095 | 10.20 | 0.40 | 11.5-25 | 0.45-1 | 2/0-500 |
| 76.20 | 3.00 | 33.00 | 1.30 | 2.40 | 0.095 | 10.20 | 0.40 | 11.5-30 | 0.45-1.2 | 300-1000 |
| 88.90 | 3.50 | 38.10 | 1.50 | 2.40 | 0.095 | 12.70 | 0.50 | 14-35 | 0.55-1.4 | 500-1500 |
| 88.90 | 3.50 | 43.20 | 1.70 | 2.50 | 0.100 | 12.70 | 0.50 | 14-40 | 0.55-1.6 | 650-1750 |
| 88.90 | 3.50 | 52.10 | 2.05 | 2.50 | 0.100 | 19.00 | 0.75 | 21-45 | 0.82-1.8 | 900-2500 |
| 101.60 | 4.00 | 69.80 | 2.75 | 2.50 | 0.100 | 25.40 | 1.00 | 30-63 | 1.2-2.5 | 2000-2500 |
| 114.30 | 4.50 | 88.90 | 3.50 | 2.50 | 0.100 | 30.00 | 1.18 | 33-83.8 | 1.3-3.3 | __ |
| 139.70 | 5.50 | 119.40 | 4.70 | 2.70 | 0.105 | 39.90 | 1.57 | 40.6-114.3 | 1.6-4.5 | __ |
