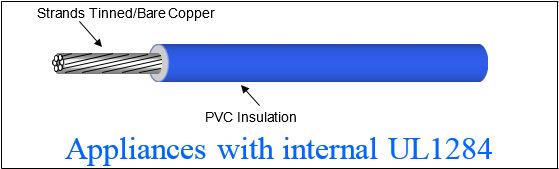

Electronic Hook Up Wire , PVC Insulated Wire Style UL1284 Hook-up Wire
Internal wiring of Appliances; or where exposed to oil at a temperature not exceeding 105℃Whichever is applicable, The most popular hookup wire for Electric.
Request a Quote for Style UL1284 Hook-up Wire
- Conductor material of tinned or bare copper
- Rated temperature 105 ℃
- Rated Voltage 600 V (Spark voltage 6000 V)
- Flame resistance VW-1 and FT1
- RoHS Compliant
Colors Available: 0-Black, 1-Brown, 2-Red, 3-Orange, 4-Yellow, 5-Green, 6-Blue, 7-Violet, 8-Grey, 9-White, 5/4–Green W/ Yellow
Striping: Longitudinal and Parallel Stripes Available Per Request
Delivery: All Stocked Items Available for Immediate Shipment, 8 Week Lead Time for Non-stocked Items
Package: Stocked in Spools, Barrel Pack Available Per Request
Wire Processing: Cut, Strip, and Tinning Available
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Nom. Dia. of Stranded Conductor | Nom. Fin. Wire Diam. | Max. Resistance (dc at 20°C) Ohm/per | Nom. wt. | ||||
| Inch | mm | Inch | mm | 1000-ft | Km | LBS./ 1000 ft. | Kg/Km | |||
| 4/0 | 259 | 21 | .5197 | 13.20 | .6772 | 17.20 | 0.0525 | 0.1722 | 714.30 | 1062.74 |
| 3/0 | 259 | 22 | .4610 | 11.71 | .6185 | 15.71 | 0.0669 | 0.2194 | 573.21 | 852.83 |
| 2/0 | 259 | 23 | .4173 | 10.60 | .5748 | 14.60 | 0.0814 | 0.2670 | 477.77 | 710.83 |
| 1/0 | 259 | 24 | .3657 | 9.29 | .5232 | 13.29 | 0.1026 | 0.3367 | 377.53 | 561.68 |
| 1 | 259 | 25 | .3331 | 8.46 | .4906 | 12.46 | 0.1300 | 0.4268 | 319.52 | 475.38 |
| 2 | 259 | 26 | .2854 | 7.25 | .4429 | 11.25 | 0.1641 | 0.5384 | 244.46 | 363.71 |
| 4 | 133 | 25 | .2386 | 6.06 | .3961 | 10.06 | 0.2608 | 0.8559 | 180.76 | 268.94 |
| 6 | 266 | 30 | .1882 | 4.78 | .3457 | 8.78 | 0.4148 | 1.361 | 123.56 | 183.83 |
| 8 | 168 | 30 | .1496 | 3.80 | .3071 | 7.80 | 0.6795 | 2.23 | 87.46 | 130.12 |
